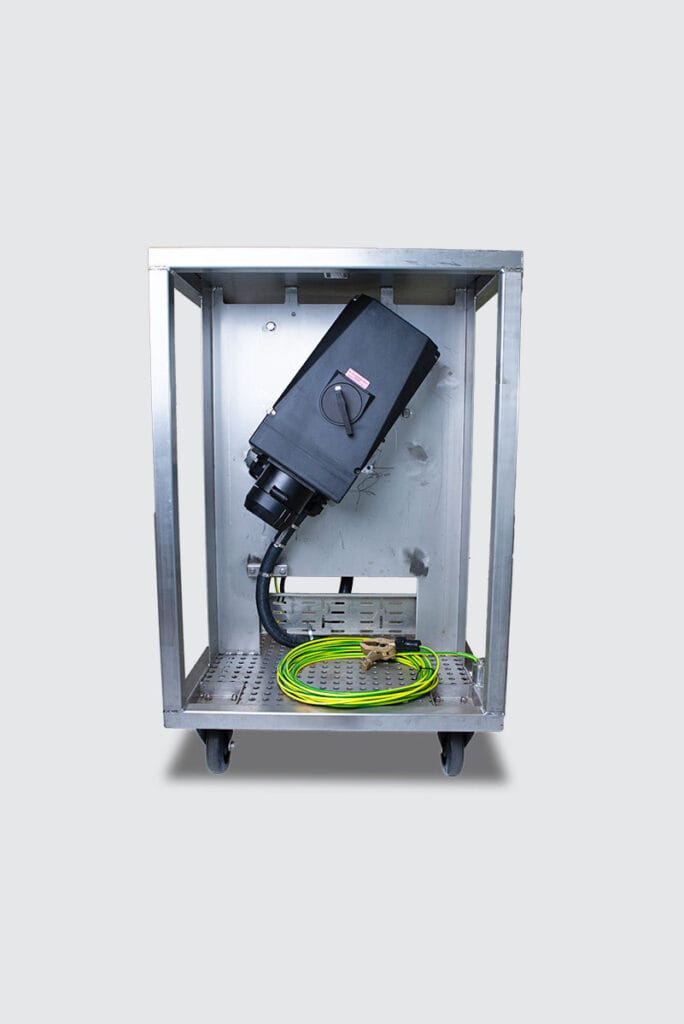

Power Unit 125Amp

• The Power Control Unit is an independent device intended for use in potentially explosive atmospheres
• The unit is designed to shut down the main power if unwanted events occur
• Connects to a control unit/control system or directly to the CCR
• The frame is made of 316SS and the unit is designed to withstand all foreseeable onshore and offshore conditions
• The Power Control Unit has a motorised circuit breaker that can be activated and deactivated when 230VAC is connected
• If it is activated, it will be deactivated when 230VAC is cancelled.
• The unit is also equipped with a 230V 1-phase socket that will be activated as soon as 230VAC is supplied
• All equipment and accessories are Ex-CE and ATEX approved for work in Zone 1

Features and benefits

• Norsok Z-015 compliant control panel
• ATEX-certified
• Multi-voltage 400-500V, 125Amp 50-60Hz
